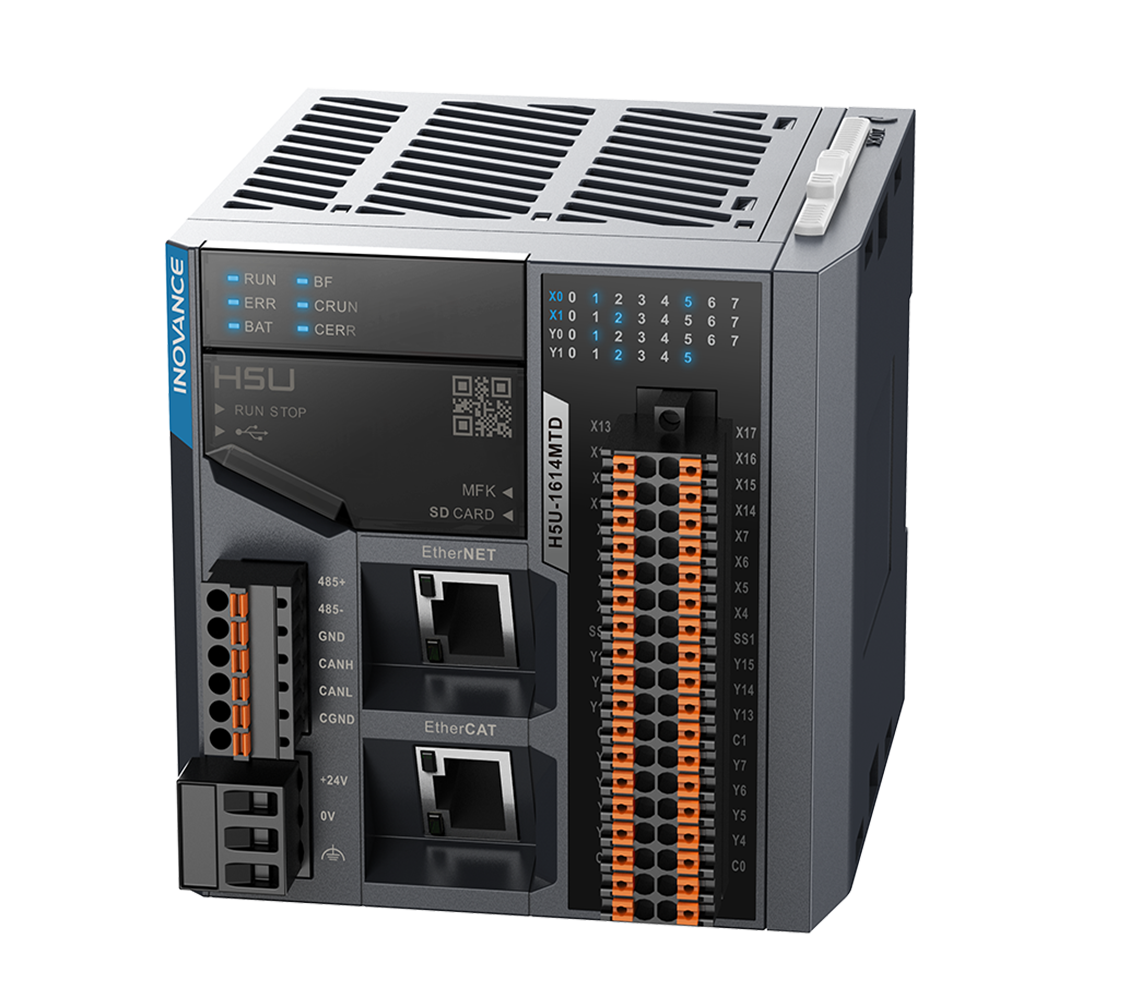

Huichuan H5U series
EtherCAT bus high-performance small PLC
Efficient Programming Implementation of EtherCAT Civilian One Stop Solution
Huichuan Technology has launched the first small PLC H5U that utilizes the EtherCAT bus, enabling line equipment to operate at high speeds. With the upgrading of terminal consumption, production and manufacturing are facing enormous pressure. H5U can simplify wiring, accelerate programming and debugging time, meet the requirements of shaft capability, and meet strict cost control requirements, calmly responding to severe challenges. It is a pioneer in applying EtherCAT bus to small PLCs.
powerful function
Supports 32 axis EtherCAT bus motion control, including absolute/relative, speed, torque, jog control, and interpolation functions. Supports up to 72 EtherCAT slaves
Meet different communication needs
Supports RS485 CAN、 Ethernet and EtherCAT interfaces enable multi-level network communication; The Ethernet interface supports Modbus TCP protocol and socket communication
Motion control
Based on PLCopen motion control instructions, it can achieve maximum 32 axis motion control; The host supports 4-axis 200KHz pulse output and 4-channel 200KHz high-speed input
Protecting independent processes
Using LD/SFC programming, encapsulating process instructions through FB/FC functionality to form a custom process library, thereby achieving program reuse; Encapsulation libraries are reused in a way that is not visible to the program, protecting proprietary processes
Support for extension modules
The host body comes with 16 inputs and 14 outputs, including 4 high-speed inputs, 4 medium speed inputs, and 4 high-speed outputs, which can achieve 4-axis pulse output and 4-axis encoder counting; Up to 16 local expansion modules can be expanded
Arc interpolation/cam/gear
Support linear and circular interpolation, electronic cam and electronic gear (pulse shaft and EtherCAT shaft can mix cam and interpolation)
